【數位】Sheet Metal Plans Drawings Helmet Holder 1 (DXF, PDF)

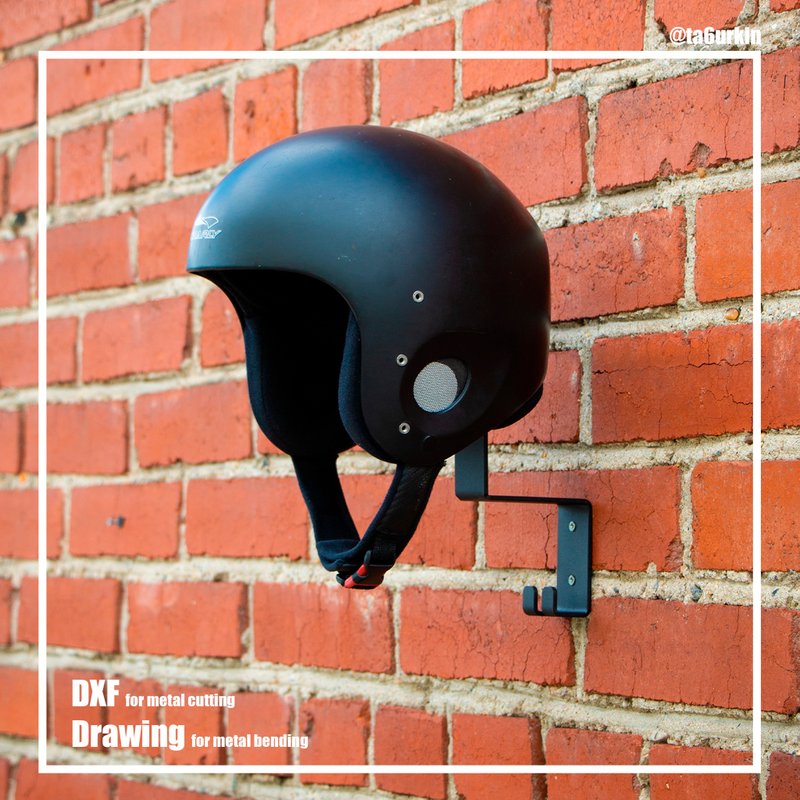

Ask any questions, I will answer them all. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine. Also, you should be able to bend the parts on a CNC bending machine. Another project that I’m doing myself. This is a Helmet Holder. Dowels (2 pcs.) must be used for wall mounting. The diameter of the holes for the dowels in the bracket is 6.2mm. This time I did not add an example drawing, since there is only one part, and does not require assembly. Project composition: 1. dxf – 1pc; 2. Drawings – 1 page. The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished holder) in any quantities. 3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. But I do not guarantee that your bending calculation software will display the models correctly. Thank you and good luck with your work!
