【數位】Sheet Metal Plans Drawings Bonfire Grate 1 (DXF, PDF)

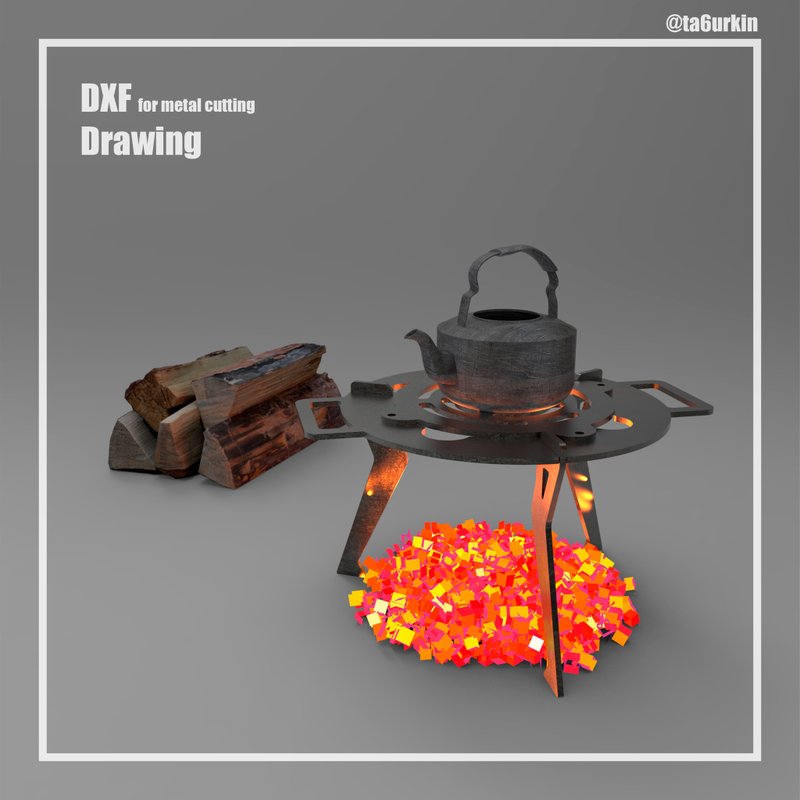

Ask any questions, I will answer them all. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine. The grate is designed to be made from 6mm steel. The project can be made of thinner steel (preferably not less than 3 mm thin), but it is desirable in this case to weld the legs. Part bending is not required. 5 parts in total. The weight of the Bonfire Grate with the specified metal thickness is 5,4 kg. The project includes: dxf (2 pcs.), Drawing (1 pages). Parts do not require bending. The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities. 3D models are not included in the project, if you need, then STP models of all parts, except for mirror parts, (not assembled) can be provided for an additional fee. Thank you and good luck with your work!
