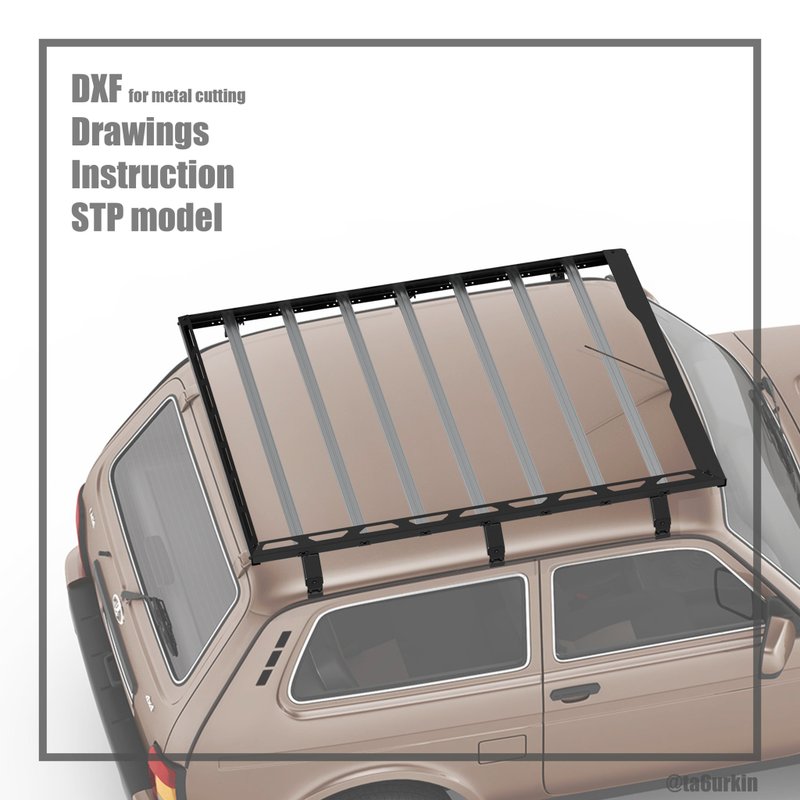

【數位】Niva Roof Rack (VAZ 2121) Plans Drawings (DXF, PDF, STP)

Ask any questions, I will answer them all. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine or manually with a convenient cutting tool using a stencil (for example, a grinder). Also, you should be able to bend the parts on a bending machine or manually, at the end welding the parts together according to the instructions and, if desired, cleaning and painting the finished product. Also in this project it is necessary to be able to cut the thread M6. Please note that the drawings are distributed on the condition that your finished product is a finished roof rack, the sale of welding kits based on my drawings is strictly prohibited. This project is suitable for the old Lada Niva (VAZ 2121). This project includes the manufacture of parts from sheet steel 1.8, 2, 3mm (laser cutting and bending). It is also necessary to cut 7 machine aluminum profiles 40×20 with a length of 1229mm. The set of fasteners required for the project can be seen in the table in the project ribbon. The files you download are not intended for distribution (in any form, digital or printed), they are intended for you and your production. You have the right to manufacture and sell products created according to these drawings (only finished sculpture) in any quantities. This project also includes a 3D model in STP format if you want to modify the project yourself. Please note that the drawings are distributed on the condition that your finished product is a finished roof rack, the sale of welding kits based on my drawings is strictly prohibited. This site does not allow you to attach an STP model, I will send it by email after purchase. Thank you and good luck with your work!
